Create a Dynamic Tiles View via an URL parameter

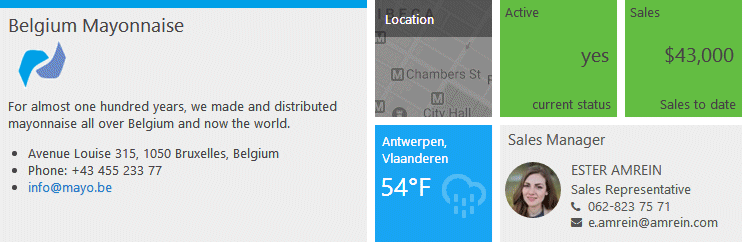

This example describes how to configure the below Tiles web part to display dynamic information based on the value of a passed in URL parameter (as for example selcted via a menu web part on another page).
Each tile points to the selected list item in the "Customer" list and displays information based on the selected item.

Tile #1 (Main tile)

The tile points at a Customers list view and displays a specific list item based on the passed in "customer" URL parameter.
Tile Type: Single List Item
Content: <h2>{Title}</h2> {Attachments/icon}<br> {Description}<br> <ul> <li>{Address}</li> <li>Phone: {Phone}</li> <li>{Email}</li> </ul> defines the template used to display specific
list columns enclosed by curly braces
URL: http://domain/Lists/Customers/AllItems.aspx?ID={customer} points to a Customer list to select the item
Size: 3x2

Tile #2 (Location tile)

This tile points to the customers Google Map location
Tile Type: Google Map
Content: Location /address={Address}/zoom=15 passes the "Address" column to the Google Map
Target: Dialog opens the map in a dialog popup

Tile #3 ("Active" KPI tile)

This tile displays a KPI based on the "Active" list column
Tile Type: KPI
Description: current status
Content: Active=yes displays in green color if the "Active" column is checked
URL: http://domain/Lists/Customers/AllItems.aspx?ID={customer} points to the Customer list item

Tile #4 ("Sales" KPI tile)

This tile displays a KPI based on the "Sales" list column
Tile Type: KPI
Description: Sales to date
Content: Sales&gt;30000 displays in green color if the "Sales" column is larger than USD 30,0000
URL: http://domain/Lists/Customers/AllItems.aspx?ID={customer} points to the Customer list item

Tile #5 (Weather tile)

This tile displays the weather based on the customer's location
Tile Type: Weather
Content: {WeatherCode} displays the weather based on the customer's "WeatherCode" list column

Tile #6 (User Profile tile)

This tile displays the profile of the sales manager assigned to the selected customer
Tile Type: User
Content: {Manager} displays the profile of the user as defined in
the customer's "Manager" list column



Please enter a comment below if you want to give feedback or have suggestions for improvements:

User Comments Post a Comment

S�bastien
12/7/2021 09:50 		Dear, I tried to pass the URL parameter from a AETiles Image (with the URL) to a new Page that includes the AETiles Single List Item, and I get a message ��Item not found!��.
Can you help how to get the parameter in the Single List Item, in order to retrieve the parameter as described in your page?
Thanks a lot for your answer.
Regards,
S�bastien
Juerg
12/7/2021 13:29 		Sebastien,
please enter the URL of the target Tiles web part that contains the dynamic �Single List Item� into the �Image� tile�s �URL� setting as eg:

https://somedomain/SitePages/SomePage.aspx?customer=1

This opens the target page, transmitting the �customer� URL parameter with a value of �1� in the above example.

The �Single List Item� tile now needs to point to the Sharepoint list that contains the data to be displayed as follows:

https://somedomain/Lists/Customers/AllItems.aspx?ID={customer}
