Timeline Web Part

The Timeline Web Part displays the appointments of the selected Sharepoint calendar as a Timeline.
The appointments can be grouped by a Calendar column which displays each group as a separate row.
This allows to easily visualize the appointments as for example room bookings etc.
A “Category” column can be specified to color code the appointments in the timeline display.

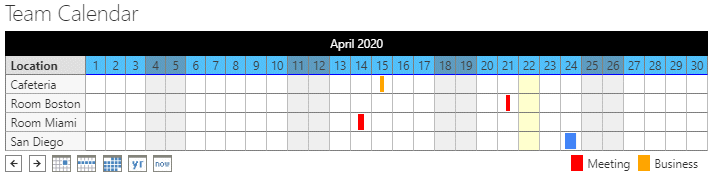

Sharepoint 2019 Modern Timeline Web Part

Web Part Configuration:

enter the optional web part title

Web Part:

enter the below configuration options:

list=TeamCalendar (enter the name of the Sharepoint calendar)
view=SomeView (optionally enter the name of the list view)
colors=Meeting=red;Business=orange (enter the Category color values)
category=Category (define the Category column)
groupby=Location (define the 'group by' column)

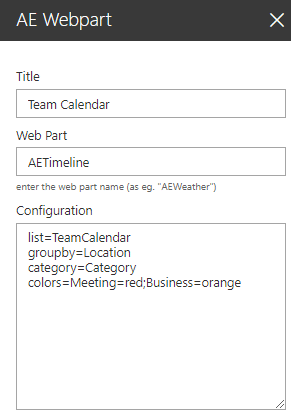

Web Part Configuration
Webpart Homepage & Download »
